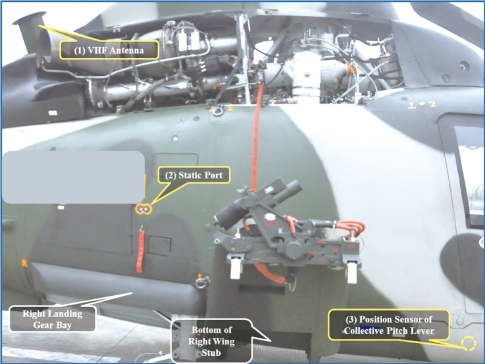

Station 7:Right Side of Fuselage

(1)VHF Antenna(55R):It receives RF signals and transmits carrier signals.Its working frequency bands are 108-155.975MHz,156-173.975MHz and 225-399.975MHz.

Key Points to Check:appearance and installation.

(2)Static Port:They measure and transmit static pressure to the barometric altimeter and air data calculator.

Key Points to Check:appearance and blockage.

(3)Position Sensor of Collective Pitch lever GE-14(66C):It senses the position of the collective pitch lever and transmits position signals to the computer.(https://www.daowen.com)

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

Bottom of Right Wing Stub

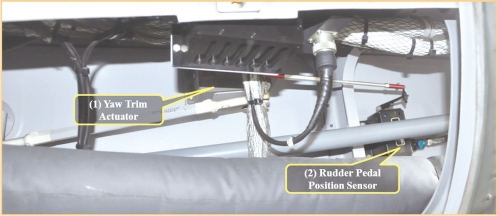

(1)Yaw Trim Actuator DCD-9A(22C):As a parallel actuator,it receives instructions of the amplifier and establishes an anchoring point for control linkage.There isn’t any damper.The actuator will be anchored when the electromagnetic clutch is engaged(switched on).

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(2)Rudder Pedal Position Sensor GE-15(29C):It receives the control position signals of the heading channel and transmits the signals to the computer.

Key Points to Check:appearance,blockage,cable plug(s)and cable(s).
