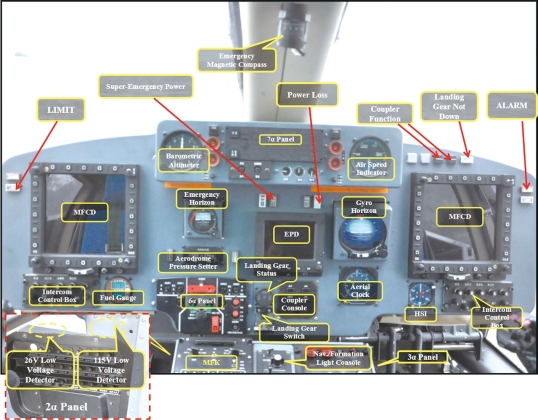

Station 10:Cockpit-Instrument Panel

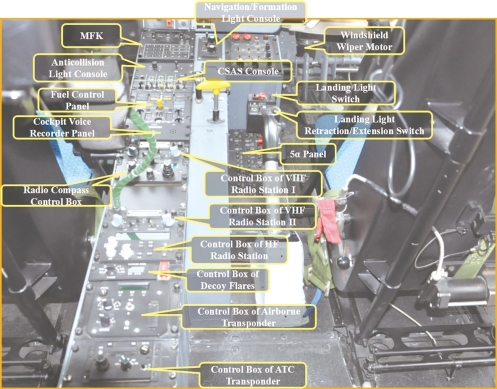

Console

Cabin Dome

(1)12α Panel:It is an electric control panel.

Key Points to Check:appearance and installation.

(2)(4)Extension Lights ZCD-16(19L and 30L):They are used for map reading and partial illumination.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(3)Warning Horn(20E):It generates two kinds of sound to warn the flight crew.High-pitch warning sounds indicate excessively high Nr while lowpitch warning sounds indicate low Nr.To trigger low-pitch sounds,Nr shall be between 170r/min and 345r/min;to trigger high-pitch sounds,Nr shall be over 380r/min.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(5)Dome Light DD-7A(22L):It is for cockpit illumination.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(6)Backup Battery CH-130(124L):It is the emergency power source of the dome light and instruction light in a helicopter accident.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(7)20Δ Connection Block,(8)815ΔK Connection Block:They are the connection blocks of the communication system,illumination system,oil system of MGB and engine monitoring and start systems.

Key Points to Check:appearance,installation and cable(s).

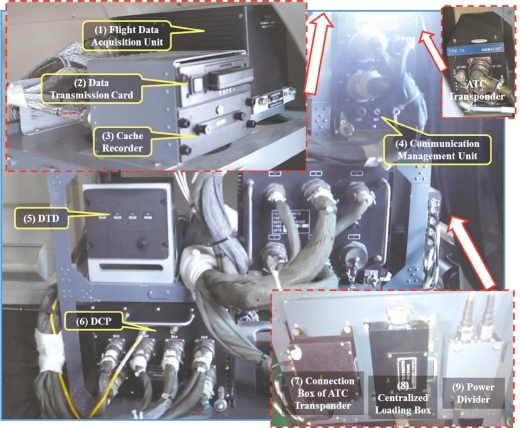

Equipment Rack in Cockpit

(1)Flight Data Acquisition Unit:It acquires and processes the data of the flight data system.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(2)Data Transmission Card:It stores tactical data and other parameters to be bound into the system.It is capable of secret key erasing in an emergency.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(3)Cache Recorder:It could record part of flight data with the flight data recorder and can be used to unload data quickly.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(4)Communication Management Unit CH-130(124L):CMU in short,it is pivotal in information processing as well as data link control and management of airborne platforms.It works with the avionic system,ultrashortwave and short-wave radio stations to enable the data link system of airborne platforms.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(5)DTD:Data transmission device is used to bind tactical data and other parameters(such as waypoints,route plans,types and quantity of external weapons and take-off weight).

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(6)DCP XKG-9B(7U):DCP(Display Control Processor)is the core unit of the IDCS.It receives data or signals output by all related mission devices for integrated processing so that the MFCDs(multi-functional color display)could display related pages of flight parameters and attack.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(7)Connection Box of ATC Transponder:It is the connection box of the ATC transponder.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(8)Centralized Loading Box(101R):It is used by the CMU to record data and videos.It has 4 serial ports and 2 USB ports.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).

(9)Power Divider:It distributes signals from the transceiver of the transponder to front and rear antennas.

Key Points to Check:appearance,installation,cable plug(s)and cable(s).
